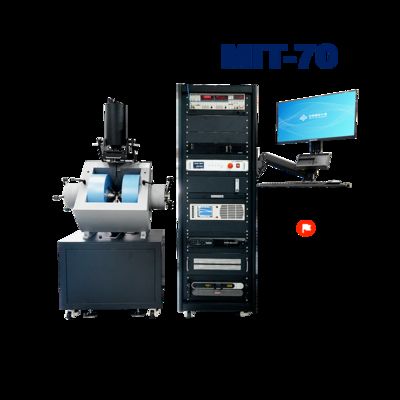

High Accuracy Vibrating Sample Magnetometer Low Noise VSM System For High Field Options

Product Description:

The Vibrating Sample Magnetometer is an essential tool for the precise measurement of magnetic materials, offering reliable data for research and industrial applications. With its advanced features and high accuracy, this instrument provides key insights into the magnetic properties of various materials.

One of the standout features of this Vibrating Sample Magnetometer is its Magnetic Moment Measurement capability with exceptional accuracy. The device offers a repeatability of ±0.5% and stability of ±0.05% over the full range, ensuring consistent and reliable results for magnetic moment analysis.

For enhanced flexibility and comprehensive analysis, the Vibrating Sample Magnetometer is equipped with a Sample Holder Rotation Range of ±360 degrees through electric rotation. This wide rotation range allows for thorough examination of magnetic samples from different angles, providing a comprehensive view of their magnetic properties.

When it comes to noise levels, this magnetometer excels in maintaining precision even in challenging conditions. At room temperature with a 3.5 mm sample space, the noise level is as low as 40 Nemu, ensuring accurate measurements in standard operating conditions. For variable temperature testing, the noise level remains impressively low at 189 Nemu, enabling reliable data collection across a wide temperature range.

The Vibrating Sample Magnetometer offers exceptional Magnetic Field Parameters to accommodate various research needs. With a magnetic field strength of 2.8 T at an air gap of 10 mm, the device delivers powerful magnetic fields for in-depth analysis. At an air gap of 3.5 mm, the magnetic field strength reaches 3 T, providing high-resolution measurements for detailed investigations. Additionally, for variable temperature testing, the instrument offers a magnetic field strength of 2.4 T, ensuring accurate results across different temperature settings.

With a Magnetic Field Resolution of 1 μT, this magnetometer enables precise measurements of magnetic properties with high sensitivity. The Closed-loop Control Stability of ±10 μT further enhances the accuracy of the system, maintaining stable magnetic field control for consistent and reliable data acquisition.

Designed for researchers and professionals working with magnetic materials, the Vibrating Sample Magnetometer offers a wide temperature range capability, making it suitable for a variety of experimental conditions. This turnkey system provides a comprehensive solution for magnetic moment analysis, sample rotation, and magnetic field measurement, streamlining the research process and delivering accurate results.

Features:

• Product Name: Vibrating Sample Magnetometer
• Magnetic Field Resolution: 1 μT; Closed-loop Control Stability ±10 μT
• Temperature Options: Variable Temperature Range 77 K～950 K; Temperature Stability ±0.2 K
• Sweep Field Speed: 0.5 T/second
• Magnetic Moment Measurement: Repeatability ±0.5%; Stability ±0.05% Full Range
• Sample Holder Rotation Range: ±360-degree Electric Rotation

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the Truth Instruments MIT-70 Vibrating Sample Magnetometer:

The Truth Instruments MIT-70 Vibrating Sample Magnetometer (VSM) is a versatile tool designed for various applications in the field of magnetic property measurement systems. Here are some key occasions and scenarios where the MIT-70 VSM can be effectively utilized:

1. Multiferroics Research: The MIT-70 VSM is ideal for studying multiferroic materials due to its precise magnetic moment measurement capabilities. Researchers can analyze the magnetic properties of multiferroics with high repeatability and stability, making it a valuable tool in this field.

2. Material Characterization: The MIT-70 VSM can be used for comprehensive material characterization, including measuring magnetic moments with repeatability of ±0.5% and stability of ±0.05% full range. Researchers can gain valuable insights into the magnetic behavior of materials under different conditions.

3. Temperature-Dependent Studies: With temperature options ranging from 77 K to 950 K and temperature stability of ±0.2 K, the MIT-70 VSM is well-suited for conducting experiments that require variable temperature control. This makes it an excellent choice for studying the magnetic properties of materials at different temperature ranges.

4. Fundamental Research: The MIT-70 VSM's ±360-degree electric rotation sample holder allows for a comprehensive analysis of magnetic properties from various angles. Researchers can explore fundamental magnetic phenomena with precision and accuracy using this feature.

5. Fast Data Acquisition: The MIT-70 VSM offers a sweep field speed of 0.5 T/second, enabling quick data acquisition for efficient experimentation. This feature is beneficial for researchers who require rapid measurements and analysis.

6. Noise Suppression: The MIT-70 VSM maintains a low noise level of 40 Nemu at room temperature with a 3.5 mm sample space, and 189 Nemu for variable temperature testing. This ensures accurate and reliable measurement results even in challenging experimental conditions.

Overall, the Truth Instruments MIT-70 VSM from China is a powerful and reliable instrument suitable for a wide range of magnetic property measurement applications, making it a valuable asset for researchers and scientists in materials science, physics, and related fields.
