Kerr Microscope

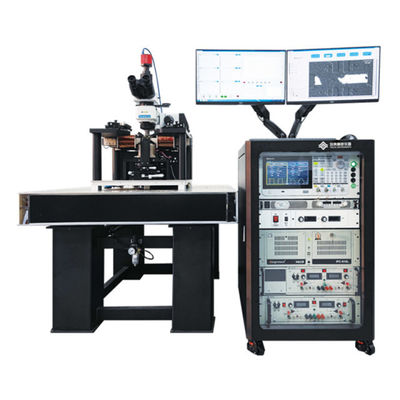

250 Nm Kerr Microscope High Resolution Magneto Optical Kerr Effect Microscope

Multifunctional Spin-Test Magneto-Optic Kerr Microscope Product Model: KMPL-S Equipment Description: This instrument enables high-resolution magnetic domain imaging of magnetic materials and spintronic chips, with a resolution of up to 250 nm. It is equipped with a highly intelligent control system and multifunctional magnetic field probe station, integrating optical imaging, multi-dimensional magnetic fields, electrical transport characterization, microwave testing, and

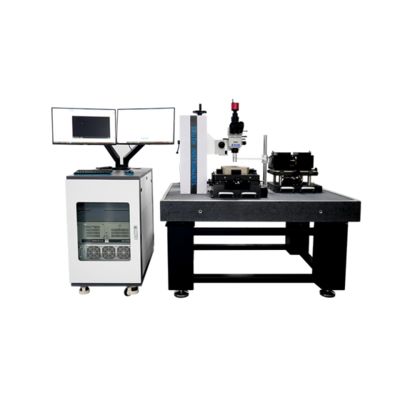

Permanent Magnet Kerr Microscope High Resolution Magneto Optical Kerr Effect Microscope 450Nm

Permanent Magnet Kerr Microscope Product Introduction Designed for in-depth research on permanent magnet materials, this advanced precision testing instrument enables high-resolution precise measurement and detailed observation of longitudinal, transverse, and vertical magneto-optical Kerr effects under stringent testing conditions of strong magnetic fields, ambient temperature, and high temperature. To ensure sample stability during testing under strong magnetic forces, it

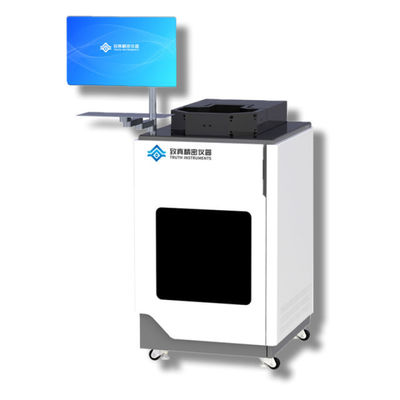

Kerr Effect Hysteresis Loop Measurement Instrument Scientific Research Measurement Instrument

Hysteresis Loop Measurement Instrument For Scientific Research Product Introduction Using the magneto-optical Kerr effect, this instrument provides high-precision characterization of magnetism in ferromagnetic, artificial antiferromagnetic, 2D materials, and microelectronic devices. It can simultaneously scan in-plane and out of plane magnetic fields to obtain hysteresis loops for any combination of in-plane/out of plane magnetic fields and in-plane/out of plane components.

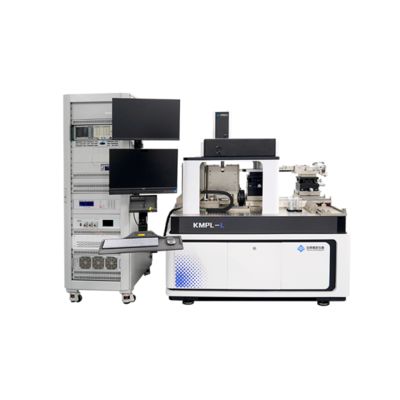

Cryogenic Kerr Microscope High Magnetic Field Laser Kerr Imaging System

Cryogenic High-Magnetic-Field Laser Kerr Microimaging System Product Introduction Developed for the weak magnetism, small size, non-conductive nature, low coercive field, and low Curie temperature of two-dimensional ferromagnetic materials, this powerful characterization system features high magnetic detectionprecision, high-precision, micro-region spot measurement and positioning strong magnetic fields and wide temperature variation, meeting most of the magnetic characteriza

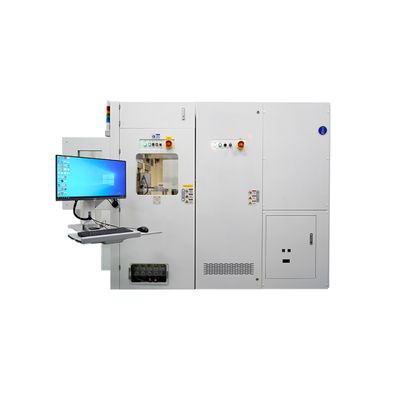

Wafer Level Hysteresis Loop Instrument Non Destructive Wafer Measurement System

Wafer-Level Hysteresis Loop Measurement Instrument Product Introduction Using polar/longitudinal magneto-optical Kerr effects (MOKE), this instrument rapidly and globally detects the magnetism of wafer films. Non-contact measurement avoids wafer damage and is suitable for post-patterning sample testing in spin chip production. It provides a vertical magnetic field of up to 2.5 T and an in-plane magnetic field of up to 1.4 T, with strong magnetic fields inducing free and

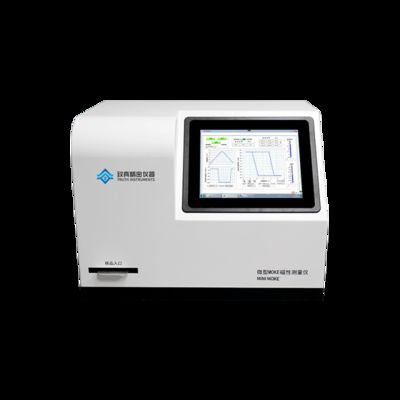

Hysteresis Loop Measurement Instrument MOKE Magnetic Measurement Instrument Miniature

Miniature Hysteresis Loop Measurement Instrument Product Introduction The MINIMOKE miniature MOKE magnetic measurement instrument uses the magneto-optical Kerr effect to measure hysteresis loops, offering advantages such as speed, precision, non-contact, and non-destructive (no additional sample processing required). It provides information on coercive force, saturation magnetic field, and remanence of magnetic materials. Lightweight, compact, easy to operate, and fast

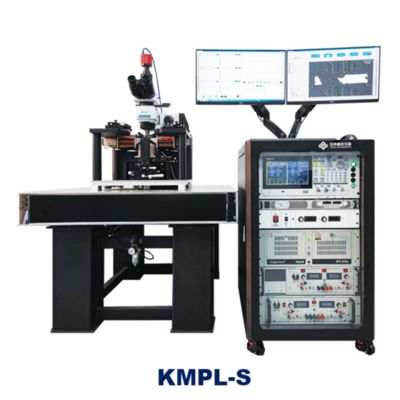

Magneto Optic Kerr Microscope 250Nm Spin Test Microscope For Comprehensive Material Characterization

SpinTest MagnetoOptic Kerr Microscope For Comprehensive Material Characterization Product Description: The Multifunctional Spin-Test Magneto-Optic Kerr Microscope is an essential tool for researchers and scientists working with magnetic thin films in the field of spintronics. This advanced MOKE microscope offers a wide range of capabilities to support precise measurements and analysis of magnetic properties. With objectives ranging from 5x to 100x, including non-magnetic

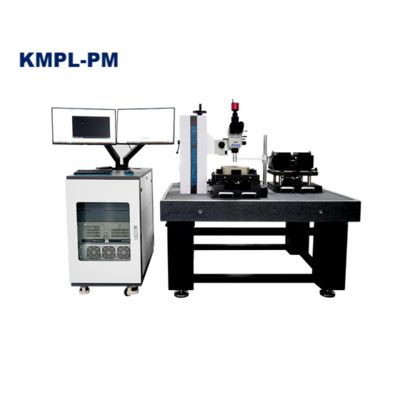

High Temperature MOKE Microscope 450Nm Study Microscope For Strong Field Magnetization Process Study

High Temperature MOKE for Strong Field Magnetization Process Study Product Description: The Permanent Magnet Kerr Microscope is an advanced tool designed for studying magnetic materials with precision and accuracy. This cutting-edge microscope utilizes Permanent Magnet Materials to generate in-plane magnetic fields, providing researchers with valuable insights into the magnetic properties of their samples. One of the key features of this microscope is its water-cooled magnet,

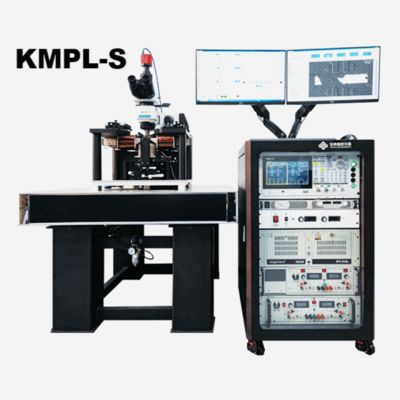

Multifunctional MOKE Microscope 250Nm Magneto Optical Kerr Effect Microscope For SOT Analysis

Multifunctional MOKE Microscope For SOT Analysis Product Description: One of the key features of the Multifunctional Spin-Test Magneto-Optic Kerr Microscope is its Microsecond Ultrafast PulseVertical Magnetic Field, which provides a vertical magnetic field strength of 60 MT with a rise time of 0.5 Us and a pulse width ranging from L Us to 10 Us. This ultrafast pulse capability allows researchers to capture dynamic magnetic processes with exceptional speed and accuracy. For
