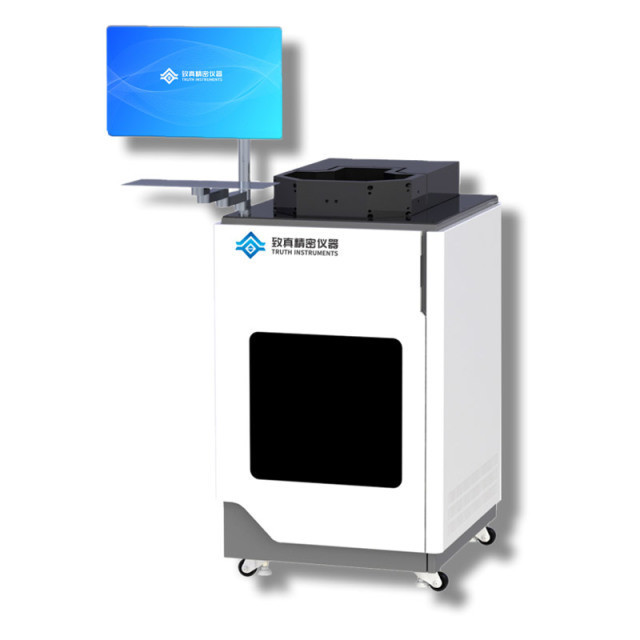

Kerr Effect Hysteresis Loop Measurement Instrument Scientific Research Measurement Instrument
Hysteresis Loop Measurement Instrument For Scientific Research Product Introduction Using the magneto-optical Kerr effect, this instrument provides high-precision characterization of magnetism in ferromagnetic, artificial antiferromagnetic, 2D materials, and microelectronic devices. It can simultaneously scan in-plane and out of plane magnetic fields to obtain hysteresis loops for any combination of in-plane/out of plane magnetic fields and in-plane/out of plane components.
Product Details
Highlight:
Kerr Effect Measurement Instrument
,Hysteresis Loop Measurement Instrument
,Scientific Research Measurement Instrument
Name:
Hysteresis Loop Measurement Instrument
Vertical Magnetic Field:
1 T@air Gap 7 Mm; 0.5 T@air Gap 16 Mm
In-Plane Magnetic Field:
1 T@air Gap 8 Mm; 0.5 T@air Gap 16 Mm
Magnetic Field Resolution:
PID Closed-loop Feedback Regulation, Resolution 0.02 MT
Kerr Angle Resolution:
0.3 Mdeg (RMS)
Multi-Axis Displacement Stage:
X, Y, φ Automatic Laser Alignment
Testing Functions:
Convenient And Precise Control Of Magnetic Field Output; Realization Of Longitudinal And Polar Hysteresis Loop Scanning, Automatic Correction And Normalization Of Hysteresis Loops, And Automatic Extraction Of Saturated Kerr Angle And Coercive Field Paramet
Basic Properties
Place of Origin:
CHINA
Brand Name:
Truth Instruments
Model Number:
PL-MOKE
Trading Properties
Price:
Price Negotiable | Contact us for a detailed quote
Payment Terms:
T/T
Product Description
Hysteresis Loop Measurement Instrument For Scientific Research
Product Introduction
Using the magneto-optical Kerr effect, this instrument provides high-precision characterization of magnetism in ferromagnetic, artificial antiferromagnetic, 2D materials, and microelectronic devices. It can simultaneously scan in-plane and out of plane magnetic fields to obtain hysteresis loops for any combination of in-plane/out of plane magnetic fields and in-plane/out of plane components. With a Kerr angle detection precision of up to 0.3 mdeg (RMS), it can detect the magnetization strength of single-atom layers and provides a tiltable sample holder for electrical/magneto-optical property characterization.
Equipment Performance
| Equipment Performance Indicator | Description |
|---|---|
| Kerr Angle Resolution | 0.3 mdeg (RMS) |
| In-Plane Magnetic Field | 1 T@air gap 8 mm; 0.5 T@air gap 16 mm |
| Vertical Magnetic Field | 1 T@air gap 7 mm; 0.5 T@air gap 16 mm |
| Magnetic Field Resolution | PID closed-loop feedback regulation, resolution 0.02 mT |
| Multi-Axis Displacement Stage | X, Y, θ,φ automatic laser alignment |
| Testing Functions | Convenient and precise control of magnetic field output; realization of longitudinal and polar hysteresis loop scanning, automatic correction and normalization of hysteresis loops, and automatic extraction of saturated Kerr angle and coercive field parameters. |
Application Cases
- Hysteresis Loop Measurement Results for Different Types of Samples
