Hysteresis Loop Measurement Instrument MOKE Magnetic Measurement Instrument Miniature
Miniature Hysteresis Loop Measurement Instrument Product Introduction The MINIMOKE miniature MOKE magnetic measurement instrument uses the magneto-optical Kerr effect to measure hysteresis loops, offering advantages such as speed, precision, non-contact, and non-destructive (no additional sample processing required). It provides information on coercive force, saturation magnetic field, and remanence of magnetic materials. Lightweight, compact, easy to operate, and fast
Product Details
Highlight:
Hysteresis Loop Measurement Instrument
,MOKE Magnetic Measurement Instrument
,Magnetic Measurement Instrument Miniature
Sample Size:
Compatible With 2-inch And Below
Vertical Magnetic Field:
650 MT@air Gap 6 Mm
Magnetic Field Resolution:
0.05 MT
Floor Space:
0.2 M²
Testing Functions:
Can Quickly Characterize The Hysteresis Loop Of PMA Films Within 15 Seconds
Kerr Angle Resolution:
1 Mdeg (RMS)
Operating System:
10.4-inch All-in-one Touch Control, WIN7 System
Basic Properties
Place of Origin:
CHINA
Brand Name:
Truth Instruments
Model Number:
MINI MOKE
Trading Properties
Price:
Price Negotiable | Contact us for a detailed quote
Payment Terms:
T/T
Product Description

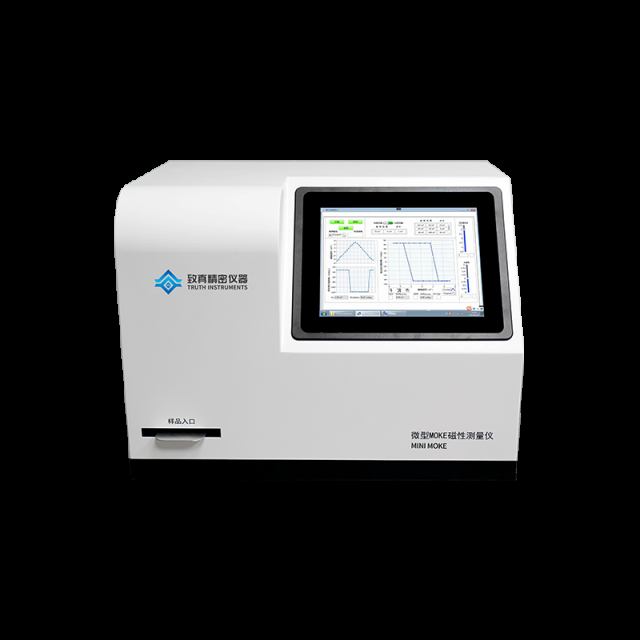

Miniature Hysteresis Loop Measurement Instrument
Product Introduction
The MINIMOKE miniature MOKE magnetic measurement instrument uses the magneto-optical Kerr effect to measure hysteresis loops, offering advantages such as speed, precision, non-contact, and non-destructive (no additional sample processing required). It provides information on coercive force, saturation magnetic field, and remanence of magnetic materials. Lightweight, compact, easy to operate, and fast testing, it meets the needs of laboratory research and industrial production for rapid non-destructive testing of various magnetic thin film materials, aiding in magnetic material formula adjustment, quality inspection, and post-processing parameter exploration.
Equipment Performance
| Equipment Performance Indicator | Description |
|---|---|
| Kerr Angle Resolution | 1 mdeg (RMS) |
| Vertical Magnetic Field | 650 mT@air gap 6 mm |
| Magnetic Field Resolution | 0.05 mT |
| Sample Size | Compatible with 2-inch and below |
| Testing Functions | Can quickly characterize the hysteresis loop of PMA films within 15 seconds |
| Operating System | 10.4-inch all-in-one touch control, WIN7 system |
| Floor Space | 0.2 m² |
Application Cases
- Magnetic Tunnel Junction (MTJ) Sample Test Results
- CoFeB Sample Test Results
- Co1.8Ptta Sample Test Results
