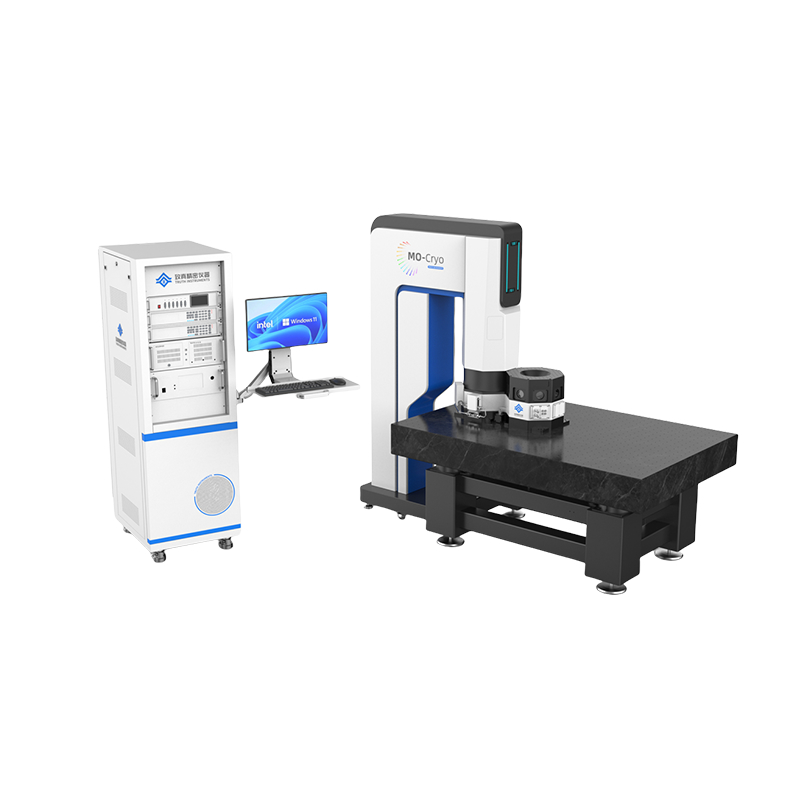

1.7 K - 350 K Magnet Optical Cryostat Superconducting MO Cryostat
Superconducting Magnet Optical Cryostat-MO-Cryo Product Introduction The MO-Cryo superconducting Magnet optical cryostat integrates ultra-low temperatures, strong magnetic fields, and optical testing into a highly integrated and flexible cryogenic system. With 7 side optical windows, 1 top optical window, and 1 bottom window, it enables multi-directional and free optical measurements in a cryogenic strong magnetic-field environment. The internal large sample space accommodate
Product Details
Highlight:
1.7 K Magnet Optical Cryostat
,350 K Magnet Optical Cryostat
,Superconducting MO Cryostat
Name:
Magnet Optical Cryostat
Magnetic Field:
Conical Split-coil Superconducting Magnet, Vertical Direction, ±7 T Strength, ±0.3% Uniformity (3 Cm Spherical Area), Field Variation Speed 0-7 T ≤30 Minutes
Temperature Range:
1.7 K-350 K
Optical Windows:
1 Top Window (50 Mm Diameter, 44 Mm Clear Aperture), 7 Side Windows (40 Mm Diameter, 26 Mm Clear Aperture)
Temperature Stability:
±0.2% For Temperatures <20 K; ±0.02% For Temperatures >20 K
Sample Space:
89 Mm Diameter, 88 Mm Height
Vibration:
Sample Stage Vibration <±20 Nm
Electrical Channels:
16 DC Lines, 4 20 GHz RF Lines, Up To 80 Cables Supported
Optical Viewing Angle:
Top Window 70° Full Viewing Angle, Side Windows 13° Full Viewing Angle
Basic Properties
Place of Origin:
CHINA
Brand Name:
Truth Instruments
Model Number:
MO Cryo
Trading Properties
Price:
Price Negotiable | Contact us for a detailed quote
Payment Terms:
T/T
Product Description
Superconducting Magnet Optical Cryostat-MO-Cryo
Product Introduction
The MO-Cryo superconducting Magnet optical cryostat integrates ultra-low temperatures, strong magnetic fields, and optical testing into a highly integrated and flexible cryogenic system. With 7 side optical windows, 1 top optical window, and 1 bottom window, it enables multi-directional and free optical measurements in a cryogenic strong magnetic-field environment. The internal large sample space accommodates a multi-axis cryogenic piezoelectric stage and in-situ electrical testing leads, meeting testing needs such as low-temperature MOKE, TR-MOKE, low-temperature Raman,low-temperature photoluminescence, ultrafast laser pumping, terahertz time-domain spectroscopy, etc.
Equipment Performance
| Equipment Performance Indicator | Description |
|---|---|
| Temperature Range | 1.7 K-350 K |
| Temperature Stability | ±0.2% for temperatures <20 K; ±0.02% for temperatures >20 K |
| Magnetic Field | Conical split-coil superconducting magnet, vertical direction, ±7 T strength, ±0.3% uniformity (3 cm spherical area), field variation speed 0-7 T ≤30 minutes |
| Vibration | Sample stage vibration <±20 nm |
| Sample Space | 89 mm diameter, 88 mm height |
| Optical Windows | 1 top window (50 mm diameter, 44 mm clear aperture), 7 side windows (40 mm diameter, 26 mm clear aperture) |
| Optical Viewing Angle | Top window 70° full viewing angle, side windows 13° full viewing angle |
| Electrical Channels | 16 DC lines, 4 20 GHz RF lines, up to 80 cables supported |
