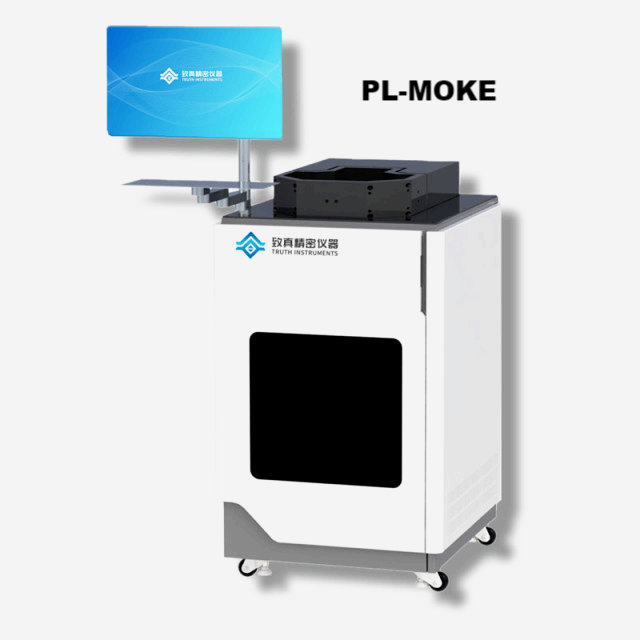

High Sensitivity MOKE System Hysteresis Loop Measurement Instrument For Weak Magnetism And 2D Material Study

Product Description:

The Hysteresis Loop Measurement Instrument for Scientific Research is a cutting-edge tool specifically designed for the characterization of weak magnetic materials. This advanced system offers unparalleled Magnetic Field Resolution through PID Closed-loop Feedback Regulation, with an impressive resolution of 0.02 MT. This level of precision enables researchers to explore the intricate magnetic properties of various materials with exceptional accuracy.

Equipped with a Multi-Axis Displacement Stage, the instrument facilitates X, Y, and φ Automatic Laser Alignment, ensuring optimal positioning for reliable and consistent measurements. This feature allows for seamless manipulation and alignment of samples, enhancing the overall efficiency and precision of the measurement process.

When it comes to in-plane magnetic field measurements, the instrument offers outstanding capabilities, providing a magnetic field strength of 1 T at an air gap of 8 mm and 0.5 T at an air gap of 16 mm. This flexibility in field strength and gap distance allows researchers to tailor their experiments according to specific requirements, enabling comprehensive analysis of magnetic behaviors in different configurations.

For vertical magnetic field measurements, the instrument showcases remarkable performance, delivering a magnetic field strength of 1 T at an air gap of 7 mm and 0.5 T at an air gap of 16 mm. This versatility in vertical magnetic field strength and gap distance empowers researchers to explore a wide range of magnetic phenomena, offering valuable insights into the material's magnetic properties under varying conditions.

Moreover, the instrument features an impressive Kerr Angle Resolution of 0.3 Mdeg (RMS), further enhancing its precision and accuracy in characterizing magnetic materials. This high-resolution capability enables researchers to capture subtle changes in Kerr angles with exceptional detail, facilitating in-depth analysis of material properties and behaviors.

Designed as part of a comprehensive 2D Material Characterization System, the Hysteresis Loop Measurement Instrument plays a crucial role in advancing research in the field of weak magnetic materials. Its cutting-edge capabilities and precise measurements make it an indispensable tool for researchers studying the magnetic properties of a wide range of materials.

Whether used in conjunction with a Low Temperature Kerr Microscope or as a standalone instrument, this system offers unmatched performance and reliability for researchers seeking to delve deeper into the complexities of magnetic materials. With its state-of-the-art features and advanced technology, the Hysteresis Loop Measurement Instrument is at the forefront of magnetic material characterization, empowering researchers to unlock new insights and drive innovation in the field.

Features:

• Product Name: Hysteresis Loop Measurement Instrument for Scientific Research
• Kerr Angle Resolution: 0.3 Mdeg (RMS)
• Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.02 MT
• Vertical Magnetic Field:
  • 1 T @ air Gap 7 Mm
  • 0.5 T @ air Gap 16 Mm
• Testing Functions:
  • Convenient And Precise Control Of Magnetic Field Output
  • Realization Of Longitudinal And Polar Hysteresis Loop Scanning
  • Automatic Correction And Normalization Of Hysteresis Loops
  • Automatic Extraction Of Saturated Kerr Angle And Coercive Field Parameters
• Multi-Axis Displacement Stage: X, Y, φ Automatic Laser Alignment

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for Truth Instruments PL-MOKE Hysteresis Loop Measurement Instrument

Brand Name: Truth Instruments

Model Number: PL-MOKE

Place Of Origin: CHINA

Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.02 MT

Vertical Magnetic Field: 1 T@air Gap 7 Mm; 0.5 T@air Gap 16 Mm

Kerr Angle Resolution: 0.3 Mdeg (RMS)

In-Plane Magnetic Field: 1 T@air Gap 8 Mm; 0.5 T@air Gap 16 Mm

Multi-Axis Displacement Stage: X, Y, φ Automatic Laser Alignment

The Truth Instruments PL-MOKE Hysteresis Loop Measurement Instrument is designed for various scientific research applications, especially suitable for Non-conductive Samples, Cryogenic Magnetic Imaging System, and 2D Materials studies.

Researchers can utilize this advanced instrument in a range of scenarios, including but not limited to:

1. Non-conductive Samples Analysis: The high precision and resolution of the PL-MOKE instrument make it ideal for analyzing non-conductive samples with intricate magnetic properties. Researchers can explore the hysteresis loops of such samples to gain valuable insights.

2. Cryogenic Magnetic Imaging System Development: The instrument's capabilities, such as its vertical and in-plane magnetic field resolution, make it a valuable tool for developing and testing cryogenic magnetic imaging systems. The precise measurements provided by PL-MOKE can aid in optimizing the performance of such systems.

3. 2D Materials Research: With its multi-axis displacement stage and automatic laser alignment feature, the PL-MOKE instrument is well-suited for studying 2D materials and their magnetic properties. Researchers can accurately measure hysteresis loops and Kerr angles of these materials for in-depth analysis.

Overall, the Truth Instruments PL-MOKE Hysteresis Loop Measurement Instrument offers a versatile solution for scientific research in various fields, providing researchers with the tools needed to explore the magnetic properties of non-conductive samples, develop cryogenic magnetic imaging systems, and investigate the characteristics of 2D materials.
