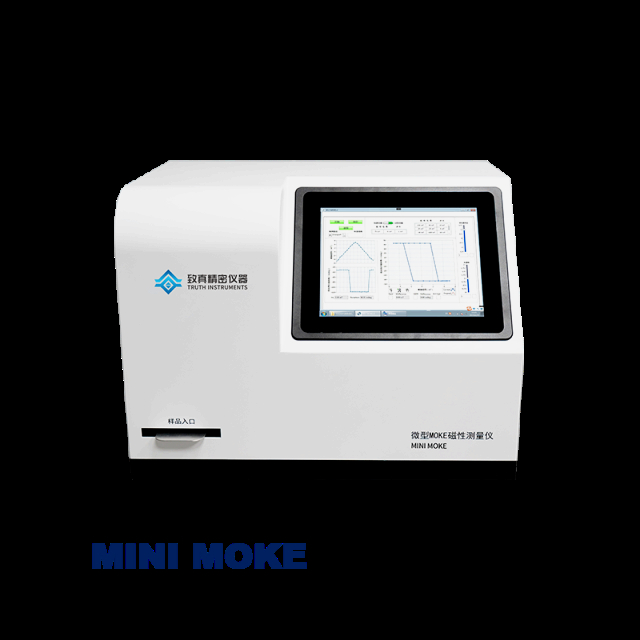

Desktop MOKE System Hysteresis Loop Tracer For Non Destructive Thin Film Hysteresis Analysis

Product Description:

The Miniature Hysteresis Loop Measurement Instrument is a cutting-edge device designed for rapid magnetic film analysis and precise measurement of coercivity using MOKE magnetometer technology. This advanced instrument features an intuitive operating system with a 10.4-inch all-in-one touch control panel running on the WIN7 system, providing a user-friendly interface for efficient data collection and analysis.

With a magnetic field resolution of 0.05 MT, the Miniature Hysteresis Loop Measurement Instrument offers high sensitivity and accuracy in detecting subtle changes in magnetic properties. The Kerr angle resolution of 1 Mdeg (RMS) ensures precise measurement of the Kerr effect, allowing for detailed analysis of magnetic behavior in thin films.

Equipped with a vertical magnetic field capability of up to 650 MT at an air gap of 6 mm, this instrument can generate strong and uniform magnetic fields for reliable measurements. The Miniature Hysteresis Loop Measurement Instrument is compatible with sample sizes of 2-inch and below, making it versatile for a wide range of research and industrial applications.

Features:

• Product Name: Miniature Hysteresis Loop Measurement Instrument
• Kerr Angle Resolution: 1 Mdeg (RMS)
• Magnetic Field Resolution: 0.05 MT
• Sample Size: Compatible With 2-inch And Below
• Testing Functions: Can Quickly Characterize The Hysteresis Loop Of PMA Films Within 15 Seconds
• Vertical Magnetic Field: 650 MT@air Gap 6 Mm

Technical Parameters:

Applications:

Truth Instruments presents the Miniature Hysteresis Loop Measurement Instrument, the MINI MOKE, designed in CHINA. This advanced instrument offers precise measurements with a Magnetic Field Resolution of 0.05 MT and Kerr Angle Resolution of 1 Mdeg (RMS).

The Miniature Hysteresis Loop Measurement Instrument, MINI MOKE, is ideal for various Quality Inspection applications due to its high accuracy and reliability. It ensures consistent and precise results, making it a valuable tool in quality control processes.

For Industrial Production settings, the MINI MOKE is a versatile instrument compatible with sample sizes of 2 inches and below. Its compact design with a floor space of 0.2 M² makes it suitable for production environments where space is limited.

Equipped with a 10.4-inch All-in-one Touch Control interface and WIN7 Operating System, the Miniature Hysteresis Loop Measurement Instrument offers user-friendly operation and data management. It streamlines the measurement process and enhances efficiency in various industrial applications.
