Vacuum Cryogenic Probe Station Electrical Testing Automated Probe Station

Product Description:

The Cryogenic Probe Station is an essential tool for cryogenic device characterization, providing a cost-effective solution for researchers and engineers in various industries. This closed-cycle probe station offers precise control and stability for conducting experiments at low temperatures.

Key Features:

Vacuum: The Cryogenic Probe Station boasts a low-temperature vacuum level of <1.2E-3Pa, ensuring a clean and controlled environment for accurate measurements and tests.

Needing Range: Users have the flexibility to access any point within a 25mm diameter, allowing for versatile positioning and probing of samples with ease.

Probe Arm Stroke: The probe station features X-Y-Z probe arm strokes of 50mm, 25mm, and 25mm respectively, enabling precise movements and adjustments during experiments.

Sample Space: With a sample holder diameter of up to 51mm, users can accommodate a wide range of sample sizes and types for comprehensive testing and analysis.

Thermal Anchor: The Cryogenic Probe Station ensures minimal temperature differences (<10K) between the probe arms and sample stage, maintaining thermal stability and accuracy during experiments.

Overall, the Cryogenic Probe Station is a reliable and efficient tool for cryogenic device characterization, offering a range of advanced features and capabilities to meet the diverse needs of researchers and engineers. Its precision, flexibility, and stability make it an essential asset for conducting experiments at low temperatures with confidence and accuracy.

Features:

• Product Name: Cryogenic Probe Station
• Vibration: Sample Stage Vibration <1 μm (peak-to-peak)
• Probe Arm Stroke: X-Y-Z, 50 Mm-25 Mm-25 Mm
• Vacuum: Low-temperature Vacuum <1.2E-3Pa
• Sample Space: Sample Holder Diameter Up To 51 Mm
• Sample Temperature: 4 K-420 K

Technical Parameters:

Applications:

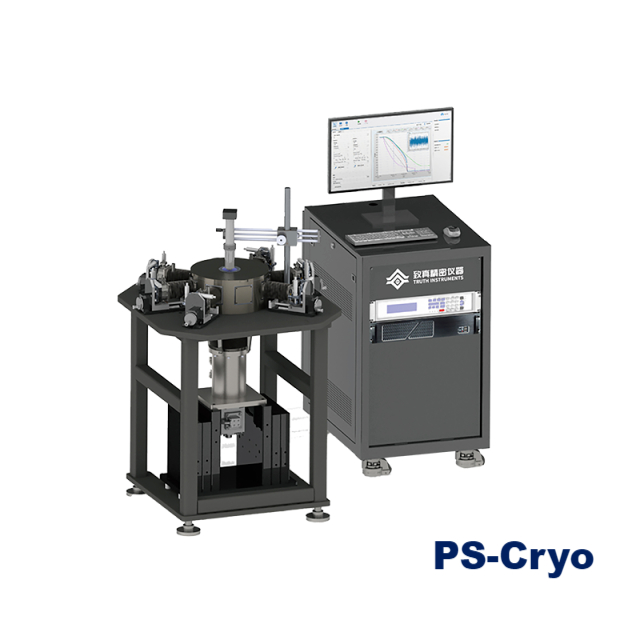

Truth Instruments' PS-Cryo Cryogenic Probe Station is a versatile tool designed for cryogenic device characterization in various research and testing environments. With its origin in China, this probe station offers reliability and performance at an affordable price point, making it a valuable asset for researchers and engineers working in the field of low-temperature physics.

The PS-Cryo is equipped with a low-temperature vacuum of less than 1.2E-3Pa, ensuring a stable and controlled testing environment for sensitive samples. This closed-loop system provides precise control over the sample temperature, ranging from 4 K to 420 K, allowing for accurate measurements and analysis across a wide temperature range.

With standard 4 probe arms and support for up to 8 arms, the PS-Cryo offers flexibility in sample configurations, making it suitable for a variety of experimental setups. The sample holder diameter of up to 51 mm provides ample space for different sample types and sizes, further enhancing its versatility.

In addition, the sample stage vibration of less than 1 μm (peak-to-peak) ensures minimal interference during measurements, allowing for reliable and reproducible results. Whether conducting research in academia or developing cutting-edge technologies in industry, the PS-Cryo is a dependable tool for conducting cryogenic experiments with precision.
