Versatile MRAM Tester High Resolution ATE Test Equipment For Electrical Chip Properties

Product Description:

One of the key highlights of this product is its Excitation System2, which ensures the uniformity of the X-axis magnetic field with an impressive accuracy of ≤±1% at 2000 Oe within a Φ35 mm spherical space. This level of precision guarantees consistent and reliable test results, particularly when analyzing in-plane magnetic fields.

Moreover, the Excitation System4 of the machine boasts a remarkable resolution for the magnetic field monitor, with a sensitivity of ≤10 μT. This high level of resolution is crucial for detecting subtle variations in the magnetic field, especially when examining out-of-plane magnetic fields.

When it comes to the Excitation System, the machine offers a maximum magnetic field intensity of ±2000 Oe on the X-axis. This powerful magnetic field generation capability enables comprehensive testing of magnetic chips, ensuring that all relevant parameters are accurately measured and analyzed.

The Temperature Control System of the machine is another standout feature, providing precise control over the operating temperature. The outlet temperature of the system supports a wide range from -70°C to 20°C, while the internal temperature range of the socket extends from -60°C to 170°C. This extensive temperature control capability allows for testing magnetic chips under various temperature conditions, ensuring the reliability and accuracy of the final test results.

In addition, the machine is equipped with a Test Ambient Temperature Module that includes a temperature monitoring module. This module offers a temperature accuracy of ≤0.5°C, ensuring that the test environment is maintained within the desired temperature range. Moreover, the temperature overshoot is kept to a minimum at ≤0.5°C, further enhancing the precision and reliability of the test process.

Overall, the Magnetic Chip Final Test Machine is a versatile and sophisticated Automated Test Equipment (ATE) solution tailored specifically for testing magnetic chips. With its advanced Excitation Systems, precise Temperature Control System, and comprehensive temperature monitoring capabilities, this machine ensures accurate and reliable testing of magnetic chips, covering both in-plane and out-of-plane magnetic fields.

Features:

• Product Name: Magnetic Chip Final Test Machine
• Temperature Control System:
  • The Outlet Temperature Supports A Range Of -70°C To 20°C
  • The Internal Temperature Range Of The Socket Is -60°C To 170°C
• Test Ambient Temperature Module:
  • Equipped With A Temperature Monitoring Module, With A Temperature Accuracy Of ≤0.5°C
  • Temperature Overshoot ≤0.5°C
• Excitation System: The Maximum Magnetic Field Intensity On The X-axis Is ±2000 Oe
• Electric Displacement Stage Module:
  • θ-axis Adjustment Range: ±180°
  • Rotational Accuracy ≤1°
  • Equipped With An Absolute Position Encoder
• Socket Test Seat:
  • Can Withstand Temperatures Ranging From -60°C To 170°C
  • The Material Is Non-magnetic

Technical Parameters:

Applications:

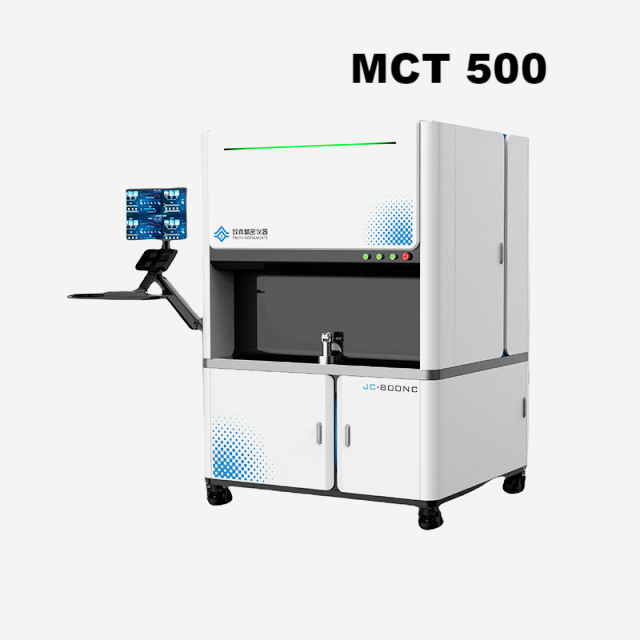

Truth Instruments presents the MCT 500 Magnetic Chip Final Test Machine, designed and manufactured in CHINA to meet the highest standards of quality assurance. This advanced testing equipment is ideal for a variety of product application occasions and scenarios, making it a versatile tool for industries requiring precise magnetic field testing.

The MCT 500 features an Excitation System with a resolution of the magnetic field monitor ≤10 μT, ensuring accurate and reliable results for quality control purposes. Its Electric Displacement Stage Module allows for θ-axis adjustment within a range of ±180°, with a remarkable rotational accuracy of ≤1° thanks to the equipped absolute position encoder.

For batch testing requirements, the Excitation System2 provides uniformity of the X-axis magnetic field ≤±1% at 2000 Oe in a Φ35 mm spherical space, guaranteeing consistent results across multiple samples. The Excitation System also boasts a maximum magnetic field intensity of ±2000 Oe on the X-axis, catering to a wide range of magnetic field testing needs.

Temperature control is crucial for accurate testing, and the MCT 500 is equipped with a Temperature Control System that supports an outlet temperature range of -70°C to 20°C. Additionally, the internal temperature range of the socket is -60°C to 170°C, ensuring the stability of test conditions even in extreme environments.

Whether you require quality assurance testing, tri-temp functionality, or batch testing capabilities, the Truth Instruments MCT 500 Magnetic Chip Final Test Machine is the reliable solution for your magnetic field testing needs. Trust in its precision, versatility, and advanced features to streamline your testing processes and ensure the quality of your products.
