Magnetic Field Probe Station 0.05 MT Probing Station For Variable Temperature Testing

Product Description:

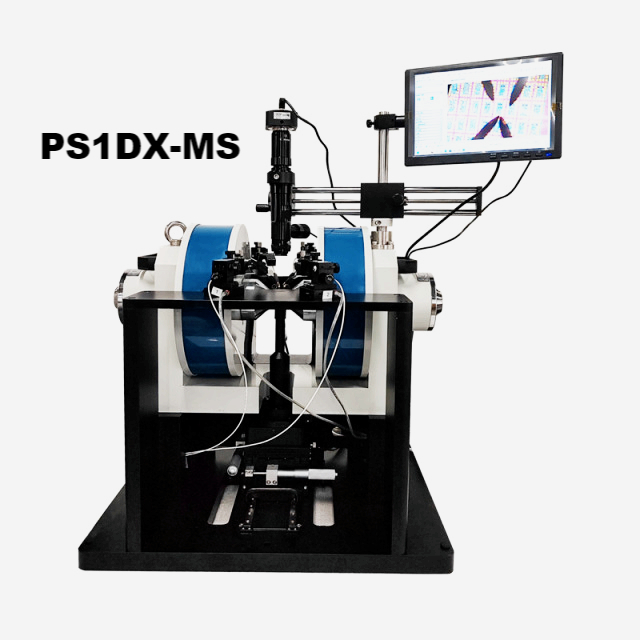

The 1D In-Plane Magnetic Field Probe Station is a sophisticated tool designed for precise magnetoresistance measurement in research and testing applications. This magnetic probe station is equipped with advanced features to ensure accurate and reliable data collection, making it an essential instrument for researchers and scientists working in the field of magnetoresistance measurement.

The probe station features a Probe Seat that includes 4 groups of DC probes, 1 group of RF probes, and an 8-pin wire-bonded sample seat. This configuration allows for versatile testing capabilities, making it suitable for a wide range of magnetic field measurement scenarios. The inclusion of both DC and RF probes ensures compatibility with different types of samples and measurement requirements, providing users with flexibility and convenience.

For precise sample positioning and manipulation, the 1D In-Plane Magnetic Field Probe Station is equipped with a Sample Displacement Stage that offers X-axis adjustable stroke of ±15 mm. The adjustment sensitivity of 10 μm ensures fine control over sample placement, allowing users to achieve accurate and repeatable measurements. Additionally, the stage features a T-axis 360-degree electric rotation capability, enabling users to easily adjust the orientation of the sample for optimal measurement conditions.

When it comes to source meter capabilities, the magnetic probe station is compatible with a range of source meters, including the SR830, N5173B, Keithley 6221, and Keithley 2182A models. This versatility allows users to select the appropriate source meter for their specific measurement needs, ensuring compatibility and accuracy in data acquisition.

One of the key features of the 1D In-Plane Magnetic Field Probe Station is its magnetic field uniformity, which is rated at ±1%φ1 mm. This high level of uniformity ensures that measurements are reliable and consistent, providing users with confidence in the accuracy of their results. Additionally, the station offers optical magnification ranging from 0.75x to 5x, allowing users to zoom in on the sample for detailed analysis and measurement.

In conclusion, the 1D In-Plane Magnetic Field Probe Station is a powerful and versatile instrument for magnetoresistance measurement, offering a range of advanced features to support accurate and reliable data collection. With its flexible probe seat, precise sample manipulation capabilities, compatibility with multiple source meters, and high magnetic field uniformity, this magnetic probe station is an essential tool for researchers and scientists conducting cutting-edge research in the field of magnetoresistance measurement.

Features:

• Product Name: 1D In-Plane Magnetic Field Probe Station
• Probe Seat: 4 Groups Of DC Probes, 1 Group Of RF Probes, 8-pin Wire-bonded Sample Seat
• Air Gap: Adjustable From 0-80 Mm
• Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.05 MT
• Source Meter: SR830, N5173B, Keithley 6221, Keithley 2182A
• Magnetic Field Strength: 1 T@air Gap 20 Mm

Technical Parameters:

Applications:

Truth Instruments 1D In-Plane Magnetic Field Probe Station (Model: PS1DX-MS) is a sophisticated testing tool designed for various applications within the Semiconductor Industry and Spintronic Devices research fields. Originating from CHINA, this probe station offers precise measurements and analysis capabilities for magnetic fields with a resolution of 0.05 MT using PID Closed-loop Feedback Regulation.

One of the key features of this probe station is its adjustable air gap, ranging from 0 to 80 mm, allowing flexibility in experimental setups and accommodating different sample configurations. The PS1DX-MS is compatible with a range of source meters including SR830, N5173B, Keithley 6221, and Keithley 2182A, ensuring versatility in data acquisition and analysis.

For sample manipulation, the probe station is equipped with an X-axis adjustable displacement stage with a stroke of ±15 mm and an adjustment sensitivity of 10 μm. Additionally, the stage offers 360-degree electric rotation, enabling precise positioning of samples for accurate measurements.

The probe seat of the PS1DX-MS includes 4 groups of DC probes and 1 group of RF probes, along with an 8-pin wire-bonded sample seat. This configuration allows for comprehensive testing of samples and compatibility with various types of probes for different measurement scenarios.

With its capabilities to measure in-plane magnetic fields and accommodate various sample sizes and configurations, the Truth Instruments 1D In-Plane Magnetic Field Probe Station is ideal for research and development activities in the Semiconductor Industry and Spintronic Devices. Researchers and engineers working on applications requiring precise measurements of horizontal fields will find this probe station to be a valuable asset in their experimental setups.
