0.05 MT Magnetic Probe Station Precise Semiconductor Prober For Spintronics And Semiconductor Testing

Product Description:

The 1D In-Plane Magnetic Field Probe Station is a cutting-edge device designed for precise and efficient characterization of spintronic devices. This advanced probe station offers a myriad of features and capabilities that make it an indispensable tool for researchers and engineers working in the field of spintronics.

The probe station is equipped with 4 groups of DC probes, 1 group of RF probes, and an 8-pin wire-bonded sample seat, providing versatile options for connecting and testing various types of samples. This setup allows for comprehensive testing and analysis of different spintronic devices, ensuring accurate and reliable results.

Featuring a sample displacement stage with an X-axis adjustable stroke of ±15 mm and an adjustment sensitivity of 10 μm, this probe station offers precise control over sample positioning. Additionally, the stage boasts a taxis 360-degree electric rotation capability, enabling researchers to easily manipulate and orient samples for detailed measurements and analysis.

One of the standout features of this probe station is its exceptional magnetic field resolution. Utilizing PID closed-loop feedback regulation, the station achieves a remarkable resolution of 0.05 mT, allowing researchers to detect even the smallest variations in magnetic fields with high precision and accuracy.

With a magnetic field strength of 1 T at an air gap of 20 mm, this probe station generates a powerful magnetic field for probing and characterizing spintronic devices. The strong magnetic field ensures thorough testing and evaluation of device performance under varying magnetic conditions, providing valuable insights for research and development.

In addition, the probe station offers excellent magnetic field uniformity, with a tolerance of ±1% at a radius of 1 mm. This high level of uniformity ensures consistent and reliable measurements across the sample, enabling researchers to obtain accurate data for their experiments and analyses.

In summary, the 1D In-Plane Magnetic Field Probe Station is a sophisticated and versatile tool that is ideal for characterizing spintronic devices with precision and accuracy. Its advanced features, including multiple probe groups, adjustable sample stage, high-resolution magnetic field measurement, and strong magnetic field generation, make it an indispensable asset for researchers and engineers working in the field of spintronics.

Features:

• Product Name: 1D In-Plane Magnetic Field Probe Station
• Air Gap: Adjustable From 0-80 mm
• Magnetic Field Strength: 1 T @ Air Gap 20 mm
• Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.05 MT
• Source Meter: SR830, N5173B, Keithley 6221, Keithley 2182A
• Optical Magnification: 0.75x-5x

Technical Parameters:

Applications:

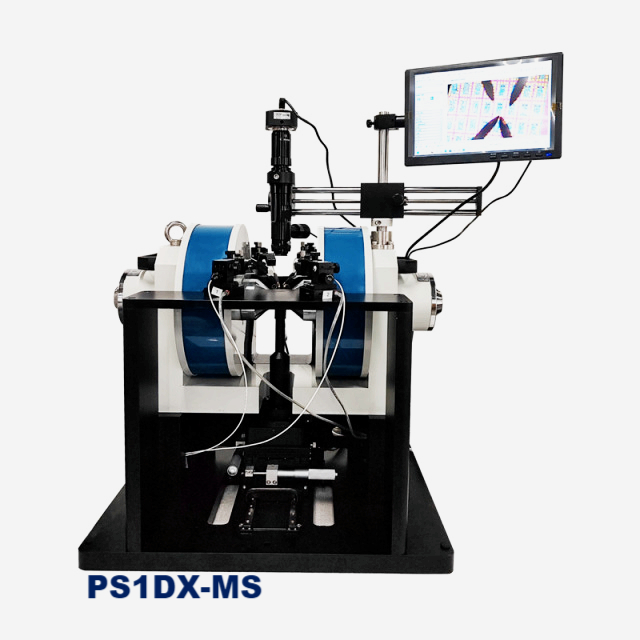

Truth Instruments presents the PS1DX-MS 1D In-Plane Magnetic Field Probe Station, designed and manufactured in CHINA. This advanced probe station is ideal for various product application occasions and scenarios, catering to a wide range of needs in the field of DC and RF device testing, magnetoresistance measurement, and horizontal field analysis.

Equipped with an X-axis adjustable stroke of ±15 mm and an adjustment sensitivity of 10 μm, the PS1DX-MS offers precise positioning for accurate measurements. The sample displacement stage also features a 360-degree electric rotation capability, providing flexibility in sample orientation.

For source meter compatibility, the PS1DX-MS works seamlessly with popular models such as SR830, N5173B, Keithley 6221, and Keithley 2182A, ensuring versatility in experimental setups.

The optical magnification range of 0.75X-5X allows for detailed observation and analysis of samples under test. The probe station includes 4 groups of DC probes, 1 group of RF probes, and an 8-pin wire-bonded sample seat, offering comprehensive connectivity options for different types of devices.

With a magnetic field strength of 1 T at an air gap of 20 mm, the PS1DX-MS enables precise control and measurement of the magnetic field, making it suitable for applications requiring precise field manipulation.
