In Plane And Vertical Magnetic Probe Station 140 MT Wafer Prober For Advanced Testing

Product Description:

The 2D In Plane-Vertical Magnetic Probe Station is a versatile tool designed for precise measurements and analysis in various applications such as electrical flipping measurement and wafer testing. This product features an adjustable air gap ranging from 0 to 40 mm, allowing flexibility in experimental setups and accommodating different sample sizes.

With a Vertical Magnetic Field Strength of 140 MT, this probe station provides a strong and stable magnetic field for accurate measurements. The In-Plane Magnetic Field Component offers a Vertical Component better than 0.1 MT, ensuring high sensitivity and reliability in detecting magnetic fields within the sample.

Equipped with Optical Magnification ranging from 0.75X to 5X, this probe station allows users to observe samples with enhanced clarity and detail, facilitating precise positioning of the probes for measurements. The In-Plane Magnetic Field Strength of 800 MT at an air gap of 12 mm further enhances the station's capability to analyze magnetic properties with high resolution.

Designed for efficiency and flexibility, this probe station is upgradeable to meet evolving research and testing requirements. Whether conducting electrical flipping measurements or performing wafer testing, this product offers reliable performance and accuracy for a wide range of applications.

Features:

• Product Name: 2D In Plane-Vertical Magnetic Probe Station
• Vertical Magnetic Field Strength: 140 MT
• Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.05 MT
• Magnetic Field Uniformity: Better Than ±1%φ1 Mm
• In-Plane Magnetic Field Component: Vertical Component Better Than 0.1 MT
• Optical Magnification: 0.75 X-5 X

Technical Parameters:

Applications:

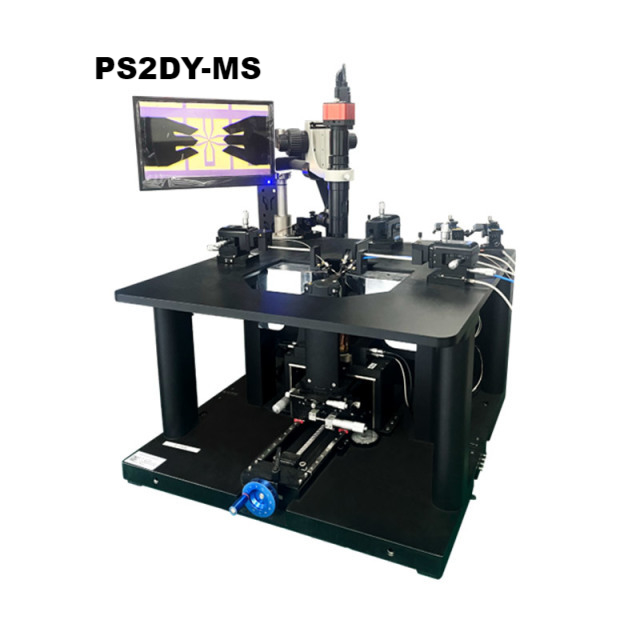

Truth Instruments presents the PS2DY-MS Vector Magnetic Probe Station, a cutting-edge product designed to cater to various research and industrial applications requiring precise measurement and analysis of 2D magnetic fields. This innovative device, originating from CHINA, offers exceptional capabilities for studying in-plane magnetic fields with vertical components, making it an ideal tool for a wide range of scenarios.

The PS2DY-MS is particularly well-suited for applications where a detailed understanding of magnetic field strength and resolution is crucial. With an in-plane magnetic field strength of 800 MT at an air gap of 12 mm and a magnetic field resolution of 0.05 MT achieved through PID closed-loop feedback regulation, this probe station ensures accurate and reliable measurements in diverse experimental setups.

Researchers and professionals working with optical magnification will appreciate the PS2DY-MS's optical magnification range of 0.75X to 5X, allowing for detailed analysis and observation of the 2D vector field under investigation. The device's vertical magnetic field strength of 140 MT, with the vertical component surpassing 0.1 MT, further enhances its utility across various scenarios requiring precise vertical field analysis.

Whether used in academic research, industrial quality control, or material characterization, the PS2DY-MS offers a versatile solution for studying 2D magnetic fields with vertical components. Its advanced features and high precision make it a valuable asset for professionals seeking to gain insights into complex magnetic phenomena and vector field interactions.
