140 MT Wafer Probe Stations 2D Probing Station For Spintronics And Wafer Level Testing

Product Description:

The Vector Magnetic Probe Station is a cutting-edge tool designed for precise measurements of magnetic fields in Spintronic devices. It is equipped with advanced features to accurately analyze the magnetic properties of materials used in various applications.

The Air Gap of the probe station is adjustable from 0-40 mm, allowing for flexibility in measuring magnetic fields at different distances. This feature enables researchers to customize the setup according to their specific requirements and achieve optimal results.

The Vertical Magnetic Field Strength of the probe station is an impressive 140 MT, providing high sensitivity for detecting magnetic fields in vertical orientations. This capability is essential for studying the magnetic behavior of materials in Spintronic devices and other applications that require vertical field measurements.

When it comes to in-plane magnetic fields, the probe station excels with a strength of 800 MT at an air gap of 12 mm. This high field strength allows for accurate characterization of in-plane magnetic properties, making it ideal for analyzing the magnetic behavior of materials in Spintronic devices.

Moreover, the In-Plane Magnetic Field Component of the probe station offers a vertical component better than 0.1 MT, ensuring precise measurements of magnetic fields in the in-plane orientation. This level of accuracy is crucial for researchers studying the magnetic properties of materials and devices that rely on in-plane magnetic fields.

For enhanced sensitivity and resolution, the probe station features PID closed-loop feedback regulation with a resolution of 0.05 MT. This advanced feedback system enables precise control and measurement of magnetic fields, making it suitable for applications that require high-resolution magnetic field analysis.

In summary, the Vector Magnetic Probe Station is a sophisticated tool tailored for researchers and engineers working on Spintronic devices and other applications that demand precise electrical flipping measurements. With its adjustable air gap, high vertical and in-plane magnetic field strengths, superior magnetic field resolution, and advanced feedback system, this probe station offers unparalleled capabilities for studying magnetic properties with accuracy and precision.

Features:

• Product Name: 2D In Plane-Vertical Magnetic Probe Station
• Vertical Magnetic Field Strength: 140 MT
• Magnetic Field Uniformity: Better Than ±1%φ1 Mm
• Air Gap: Adjustable From 0-40 Mm
• In-Plane Magnetic Field Component: Vertical Component Better Than 0.1 MT
• Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.05 MT

Technical Parameters:

Applications:

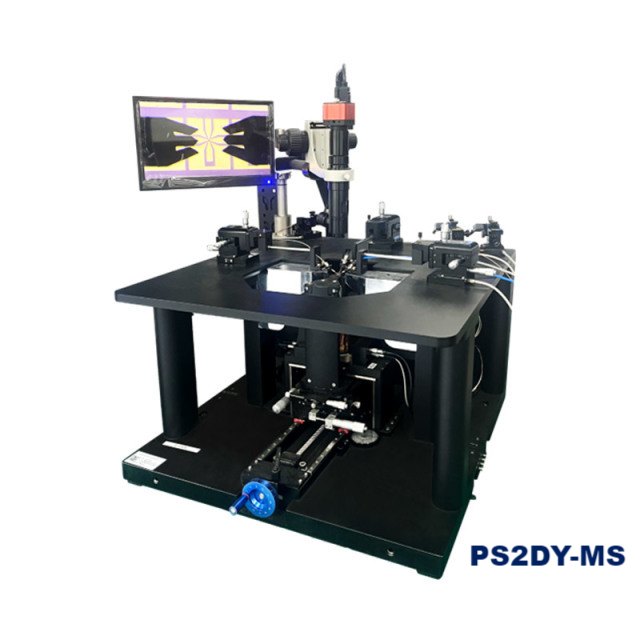

Truth Instruments PS2DY-MS 2D In Plane-Vertical Magnetic Probe Station is a versatile tool designed for a wide range of product application occasions and scenarios. With its precise specifications and features, this magnetic probe station is ideal for various testing and research purposes.

One of the key attributes of this probe station is its exceptional magnetic field uniformity, better than ±1%φ1 mm. This level of uniformity ensures accurate and reliable measurements, making it suitable for applications that require precise magnetic field control.

Moreover, the adjustable air gap of 0-40 mm allows for flexibility in testing different samples and devices. This feature makes the probe station expandable and adaptable to various testing requirements, enhancing its versatility.

The PS2DY-MS also boasts a high magnetic field resolution, thanks to its PID closed-loop feedback regulation system with a resolution of 0.05 mT. This level of resolution is crucial for detailed analysis and measurement of magnetic fields in different scenarios.

Another standout feature of this probe station is its in-plane magnetic field component, with the vertical component better than 0.1 mT. This makes it suitable for applications where precise vertical magnetic field measurements are essential.

Furthermore, the optical magnification range of 0.75X-5X offers enhanced visibility and precision during testing and analysis processes. This feature is particularly beneficial for examining small-scale samples and devices with intricate details.

Overall, the Truth Instruments PS2DY-MS 2D In Plane-Vertical Magnetic Probe Station is a reliable and versatile tool for a wide range of product application occasions and scenarios. Its expandable design, 2D magnetic field capabilities, and suitability for wafer testing make it a valuable asset for research laboratories, semiconductor facilities, and other industries requiring precise magnetic field measurement and analysis.

Originating from China, this probe station combines quality engineering with advanced technology to deliver accurate and efficient results in magnetic field testing applications.
