Vector Magnetic Probe Station Scalable Wafer Probe Station For 2D Device Characterization

Product Description:

The 2D In Plane-Vertical Magnetic Probe Station is an advanced tool designed for precise measurements of magnetic fields, specifically focusing on the vertical component. With exceptional features and capabilities, this product is an indispensable asset for researchers and engineers working in various fields such as spintronics, magnetic materials, and more.

One of the key highlights of this probe station is its superior In-Plane Magnetic Field Component, with a Vertical Component better than 0.1 MT. This ensures accurate and reliable measurements, allowing users to obtain detailed insights into the magnetic properties of their samples.

Equipped with PID Closed-loop Feedback Regulation, the Magnetic Field Resolution of this probe station is an impressive 0.05 MT. This level of precision enables users to capture subtle variations in magnetic fields with high sensitivity, facilitating in-depth analysis and research.

The Vertical Magnetic Field Strength offered by this probe station is rated at 140 MT, providing a wide range of measurement capabilities to accommodate diverse experimental requirements. Whether investigating magnetic materials or conducting specialized tests, this station delivers consistent and precise results.

For enhanced observation and analysis, the probe station features Optical Magnification ranging from 0.75X to 5X. This adjustable magnification capability allows users to zoom in on specific areas of interest, providing detailed views of the magnetic field under investigation.

Another key advantage of this probe station is its Magnetic Field Uniformity, which is better than ±1%φ1mm. This high level of uniformity ensures reliable and reproducible measurements, essential for achieving accurate and consistent results in various magnetic field experiments.

Designed as an expandable system, this probe station offers flexibility and scalability to meet evolving research needs. Users can easily upgrade and customize the station with additional components and features, enabling them to adapt to new experimental requirements and techniques.

Whether performing spintronics tests, electrical flipping measurements, or other magnetic field studies, this probe station provides a versatile platform for conducting precise and reliable experiments. Its advanced capabilities, combined with user-friendly features, make it an invaluable tool for researchers and engineers seeking to push the boundaries of magnetic field measurement and analysis.

Features:

• Product Name: 2D In Plane-Vertical Magnetic Probe Station
• In-Plane Magnetic Field Strength: 800 MT@air Gap 12 Mm
• Vertical Magnetic Field Strength: 140 MT
• Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.05 MT
• In-Plane Magnetic Field Component: Vertical Component Better Than 0.1 MT
• Air Gap: Adjustable From 0-40 Mm

Technical Parameters:

Applications:

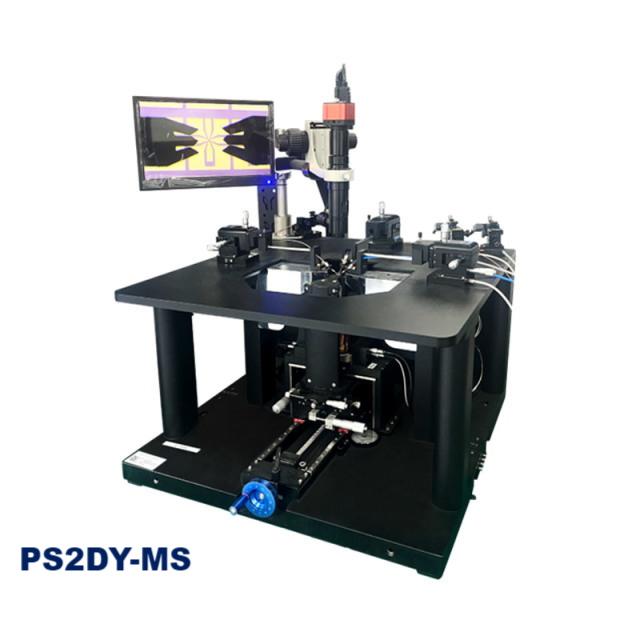

Truth Instruments presents the PS2DY-MS 2D In Plane-Vertical Magnetic Probe Station, a cutting-edge tool designed to cater to a variety of product application occasions and scenarios. Manufactured in CHINA, this advanced equipment boasts exceptional features to meet the demands of diverse industries.

With a Vertical Magnetic Field Strength of 140 MT, the PS2DY-MS is ideal for applications requiring precise magnetic field measurements. Its Optical Magnification range of 0.75 X to 5 X ensures detailed inspection of samples, making it suitable for tasks that demand high levels of accuracy.

The Magnetic Field Resolution of the PS2DY-MS is enhanced by PID Closed-loop Feedback Regulation, providing a resolution of 0.05 MT. This feature makes it perfect for tasks where fine adjustments to the magnetic field are crucial.

Moreover, the Magnetic Field Uniformity of the device is better than ±1%φ1 mm, ensuring consistent and reliable results across various experiments. The In-Plane Magnetic Field Component, with a Vertical Component better than 0.1 MT, further enhances the precision of measurements, making it an indispensable tool for research and development.

The PS2DY-MS is well-suited for Vector Magnetic Probe Station applications, where detailed analysis of 2D vector fields is required. Its capabilities make it a valuable asset for industries involved in Wafer Testing, where accuracy and efficiency are paramount.
