Wafer Level Manual Probe Station In Plane Magnetic Field Probe Station

Wafer-Level Manual In-Plane Magnetic Field Probe Station Product Introduction The wafer-level manual in-plane magnetic field probe station PS1D-Manu8 is a high-precision device designed for wafer testing, suitable for electrical and magnetic measurements in laboratories and enterprises. It provides a highly uniform in-plane magnetic field to ensure stable testing environments and is compatible with multiple sample sizes to meet diverse testing needs. With manually adjustable
Tags:

Wafer Probe Stations

RF Probe Station

Manual Probe Station
Product Details
Highlight:

Wafer Level Manual Probe Station

,

In Plane Probe Station

,

Magnetic Field Probe Station
Name: Manual Probe Station
Testing Functions: RH Testing
Magnetic Field Resolution: PID Closed-loop Feedback Regulation, Resolution 0.05 MT
Sample Size: Compatible With 8-inch And Below
Magnetic Field Uniformity: Better Than ±1%φ1 Mm
Magnetic Field Strength: 50 MT
Optical Magnification: 0.75 X-5 X
Probe Seat: 4 Groups Of DC Probes

Basic Properties

Place of Origin: CHINA
Brand Name: Truth Instruments
Model Number: PS1D-Manu8

Trading Properties

Price: Price Negotiable | Contact us for a detailed quote
Payment Terms: T/T
Product Description

Wafer-Level Manual In-Plane Magnetic Field Probe Station

Product Introduction

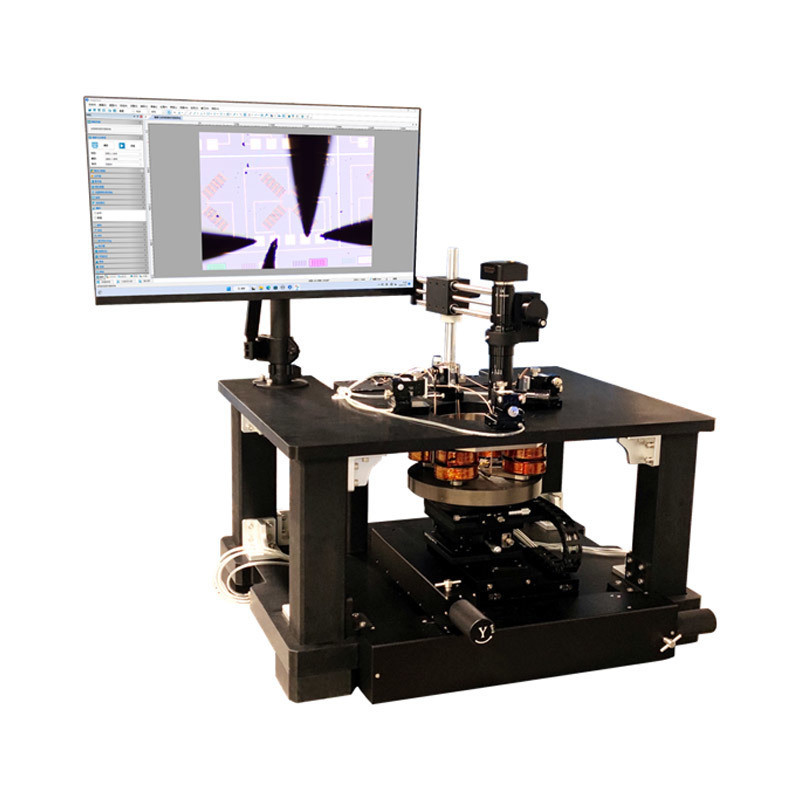

The wafer-level manual in-plane magnetic field probe station PS1D-Manu8 is a high-precision device designed for wafer testing, suitable for electrical and magnetic measurements in laboratories and enterprises. It provides a highly uniform in-plane magnetic field to ensure stable testing environments and is compatible with multiple sample sizes to meet diverse testing needs. With manually adjustable X/Y-axis displacement and 360° rotation, users can precisely control sample positioning. Equipped with 4 groups of DC or microwave probes, it easily achieves magnetoresistance and other testing functions. PS1D-Manu8 will assist in efficient and precise electrical/magnetic measurement and analysis.

Equipment Performance
Equipment Performance Indicator Description
Sample Size Compatible with 8-inch and below
Magnetic Field Strength 50 mT
Magnetic Field Uniformity Better than ±1%φ1 mm
Magnetic Field Resolution PID closed-loop feedback regulation, resolution 0.05 mT
Sample Displacement Stage XY manual stroke ±100 mm, adjustment resolution 1 μm; Z-axis stroke 10 mm, adjustment resolution 10 μm; T-axis 360° rotation, adjustment resolution 0.05°
Probe Seat 4 groups of DC probes
Optical Magnification 0.75 X-5 X
Source Meter N5173B, Keithley 6221, Keithley 2182A
Testing Functions RH testing
Application Cases
Wafer Level Manual Probe Station In Plane Magnetic Field Probe Station 0
  • Magnetoresistance Testing
Wafer Level Manual Probe Station In Plane Magnetic Field Probe Station 1
  • Magnetoresistance Testing
